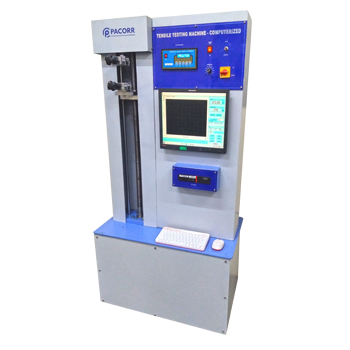

A tensile testing machine, also known as a tensile tester or tensometer, is a device used to measure the mechanical properties of materials, such as their strength, elasticity, and ductility. It does this by applying a tensile force to a sample of the material and measuring how it responds to the applied load

  • Shipping Area: All over the world
  • Model: PCTTM-SC

ISO CE





Tensile testing machines consist of a load cell, which applies the tensile force to the sample, and a measurement system, which records the resulting deformation of the sample. The sample is typically secured in the machine by grips or fixtures that hold it in place while the tensile force is applied.

Tensile testing is a common method used to evaluate the strength and performance of materials in a variety of applications, including construction, manufacturing, and research. It is used to determine the tensile strength, yield strength, and ultimate tensile strength of a material, as well as its modulus of elasticity and elongation.



Capacities provided: 50 Kgf/ 100 Kgf/ 250 Kgf/ 500 Kgf/ 1000 Kgf/ 2000 Kgf/ 3000 Kgf/ 4000 Kgf/ 5000 Kgf/

Test to be Performed: Compression Test / Top Load Test/ Push-Pull Test, Adhesion Test, Peel Bond Test, Seal Strength Test and Tensile Test

  • No. of screws: Single screw mechanism driven through motor & gearbox
  • Vertical Clearance: 700 mm
  • Exterior Body Paint: Powder coated
  • Display: Digital LCD Display
  • Capacities: 50 Kgf to 500kgf
  • Load cell: ‘S Type’ load-cell of reputed make
  • Least count for load: 5gm to 50gm
  • Results displayed on screen: Load & Elongation values
  • Least count for elongation: 0.1 mm
  • Speed Range: 40mm/min - 400 mm/min
  • Load units: Kgf
  • Speed control: Dedicated AC Drive
  • RS232 Port to interface with LCD Screen
  • Motor: Crompton/ Bharat Bijlee make 1hp induction motor with dedicated gear box & Drive
  • Test jaws: Vice Type (By default) else Please specify your applications at the time of order.
  • Power Supply: 220 Volt AC, 50 Hz, Single Phase
  • Speed Control through Variable Frequency drive
  • Highly precise load sensor for accurate results
  • Max. Grip to Grip travel length: 800 mm
  • Heavy Duty & Rugged structure
  • Over travel protection
  • Overload Protection
  • Hardened lead screws for frictionless movement
  • The parameters of software includes Operator ID, dimensions of sample (L X B X H), Speed Control, Company details, Date, Time etc.
  • Test running status can be viewed online
  • Software features: Graph setup, test control wizard, formulae/result calculations, reports, live test panel.
  • Machine will automatically move to home position after completion of test.
×
