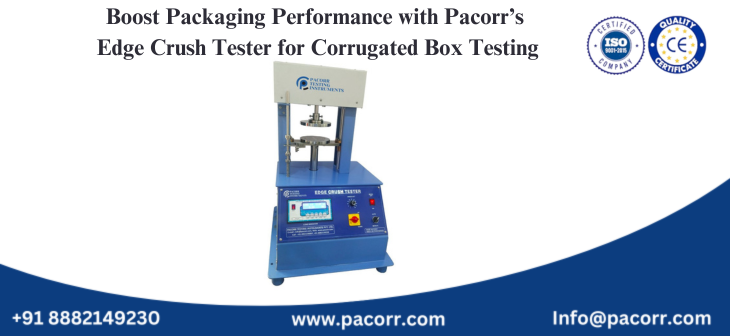

Boost Packaging Performance with Pacorr’s Edge Crush Tester for Corrugated Box Testing

Pacorr’s Edge Crush Tester for corrugated boxes plays a vital role in determining the structural strength and compression resistance of packaging materials.

This advanced testing equipment is used across industries where corrugated fiberboard boxes are essential for product safety, especially during storage and transportation.

With increasing e-commerce, logistic demands, and quality regulations, manufacturers must ensure packaging meets global durability and edge-wise compression strength standards.

This blog explores the functions, standards, applications, and benefits of the Edge Crush Tester, making it a reliable choice for packaging quality assurance.

What is an Edge Crush Tester?
An Edge Crush Tester is a laboratory-grade instrument designed to evaluate the edgewise compressive strength of corrugated board samples under controlled conditions.

This test measures the amount of force a corrugated box edge can withstand before collapsing, indicating the box's ability to carry vertical loads.

It forms a core part of Box Compression Testing (BCT) calculations, directly influencing packaging design, load capacity, and performance during stacking.

Pacorr ensures the tester complies with ASTM D642, TAPPI T804, and ISO 3037 standards, guaranteeing international testing consistency and accuracy.

Importance of Edge Crush Strength in Corrugated Packaging
The edge crush resistance of corrugated board determines its stacking strength, crucial in preventing deformation during transport or warehousing conditions.

Higher edge crush values directly correlate with stronger corrugated fiberboard, allowing manufacturers to reduce material waste and improve performance.

This property is especially vital for single-wall, double-wall, and triple-wall corrugated boxes, where cost-efficiency and durability must align.

Pacorr’s tester enables industries to meet quality control requirements while optimizing packaging strength and minimizing structural failure risks.

How Does the Edge Crush Test Work?
The Edge Crush Test (ECT) involves placing a precisely cut sample of corrugated board vertically between compression plates of the testing instrument.

The sample is subjected to a gradually increasing compressive load until failure, and the maximum force sustained is recorded in kN/m or lb/in.

Pacorr’s digital Edge Crush Tester offers real-time digital displays, programmable parameters, and automatic load application for repeatable results.

This test method ensures reliable data for packaging engineers to calculate the Box Compression Test formula (BCT = ECT × Z × √P).

Standards and Compliance Followed by Pacorr’s Edge Crush Tester
Pacorr designs its Edge Crush Tester to comply with leading global standards such as ASTM D642, TAPPI T811, ISO 3037, and DIN 53149.

These standards govern test methods, sample preparation, machine calibration, and interpretation of edgewise compression strength test results.

Compliance with these norms ensures Pacorr instruments are accepted in international trade, quality audits, and packaging validation processes.

This makes the instrument a preferred choice in industries like FMCG, pharmaceutical, automotive, and e-commerce logistics.

Types of Corrugated Board Tested with Edge Crush Tester
Pacorr’s Edge Crush Tester is compatible with single-wall, double-wall, and triple-wall corrugated boards, covering a wide range of packaging requirements.

Each type of board varies in flute design and linerboard thickness, affecting its edge strength and load-bearing capability.

With Pacorr, users can perform ECT on R-flute, E-flute, B-flute, and C-flute configurations without additional modifications to the equipment.

The flexibility to test various board types makes this tester an asset for corrugated box manufacturers and third-party test labs.

Features of Pacorr’s Edge Crush Tester for Corrugated Boxes
Pacorr’s instrument comes with a rigid compression plate, microprocessor-controlled settings, and high-accuracy load sensors for dependable measurements.

The ergonomic design includes adjustable fixtures, high-resolution displays, and in-built memory for storing multiple test results.

With automatic and manual operation modes, the device suits both R&D labs and high-throughput production floors seeking fast test cycles.

The tester is also built with safety features, overload protection, and ISO-compliant calibration protocols for long-term precision.

Applications of Edge Crush Tester Across Industries
The Edge Crush Tester serves industries including corrugated packaging, logistics, beverage, agriculture, cosmetics, and healthcare for assessing board strength.

E-commerce businesses use the tester to ensure boxes resist compressive forces during stacking and transit in fulfillment centers.

Automotive part manufacturers rely on ECT to validate packaging designs for heavy components requiring unitized load distribution.

Retail and consumer brands also leverage this instrument to test point-of-sale packaging, ensuring shelf-ready units don’t collapse.

How to Prepare a Sample for Edge Crush Test?
To conduct an accurate test, a corrugated board strip is cut with precise dimensions, usually 100 mm in height and 25 mm in width.

The sample is conditioned for 24 to 48 hours at 23°C and 50% RH before testing, as per ISO and TAPPI guidelines.

Proper alignment is ensured between plates to avoid skewed loading, which can cause inconsistent readings in compressive strength.

Pacorr also offers sample cutting tools to ensure uniform specimen preparation, reducing variability in test results.

Benefits of Using Pacorr’s Edge Crush Tester
Using Pacorr’s tester allows manufacturers to enhance packaging efficiency, reduce costs, and meet customer requirements with precision and confidence.

It helps optimize the selection of corrugated boards while ensuring structural integrity, sustainability, and reduced return rates due to box failures.

The instrument supports data-driven decision-making by providing accurate test values for ECT, ensuring regulatory and logistical compliance.

Pacorr's device also reduces operator error and increases throughput through its intuitive interface and durable construction.

Difference Between Edge Crush Test and Box Compression Test
The Edge Crush Test (ECT) evaluates the strength of the board material, while the Box Compression Test (BCT) assesses the final product.

BCT uses the ECT value as a critical input but adds box design and size into the overall load-bearing capacity calculation.

Pacorr enables both types of tests with respective instruments, offering a comprehensive solution for packaging performance evaluation.

Understanding both tests is essential for packaging engineers aiming to minimize material costs while maximizing stacking performance.

Digital vs. Analog Edge Crush Testers: What to Choose?
Pacorr recommends digital models for precision, ease of data logging, and automated testing cycles compared to manual or analog systems.

Digital Edge Crush Testers offer enhanced repeatability, real-time graphing, and USB/PC connectivity for integration with LIMS software.

For smaller setups or cost-sensitive environments, semi-digital variants provide accurate results with minimal user training requirements.

Choosing the right model depends on testing frequency, industry compliance levels, and data traceability needs.

How ECT Impacts Packaging Cost and Sustainability
A high ECT value allows for lighter yet stronger packaging, contributing to cost reductions in raw material use and shipping.

It supports sustainability goals by reducing excess board usage, carbon emissions, and improving supply chain efficiency.

Pacorr’s accurate measurements help packaging designers choose optimal flute and liner combinations without compromising strength.

This balance between performance and material use plays a critical role in achieving eco-friendly packaging compliance globally.

Why Choose Pacorr for Edge Crush Testing Instruments?
Pacorr brings years of expertise in precision testing solutions, offering instruments that are engineered for reliability, compliance, and long-term service.

The brand is trusted by leading packaging manufacturers due to its robust product support, customization capabilities, and after-sales training.

With continuous innovation, Pacorr ensures that its devices meet evolving industry testing standards and customer expectations across verticals.

Whether for quality assurance or R&D, Pacorr’s instruments provide unmatched accuracy and repeatability for critical corrugated box testing.

Conclusion – Elevate Packaging Quality with Pacorr’s Edge Crush Tester
The Edge Crush Tester by Pacorr is essential for validating the durability, performance, and structural integrity of corrugated packaging materials.

By following industry standards and offering user-friendly, highly accurate testing, the instrument empowers manufacturers to ensure safe product delivery.

From test result accuracy to long-term reliability and compliance with global packaging norms, Pacorr stands as a dependable partner in quality assurance.

Choose Pacorr to boost packaging performance, reduce waste, and ensure your corrugated boxes are always up to the mark.
