How to Use a Salt Spray Chamber for Corrosion Testing

Corrosion is a persistent issue across numerous industries, notably automotive, aerospace, marine, construction, and electronics. It compromises structural integrity, product reliability, and overall safety. To ensure high-quality, corrosion-resistant products, industries increasingly rely on standardized corrosion testing methods. One of the most reliable and globally recognized tests is performed using a Salt Spray Chamber. In this comprehensive guide, we will explain step-by-step how to effectively use a Salt Spray Chamber, focusing specifically on the highly reputed Salt Spray Chambers from Pacorr.

Understanding the Salt Spray Chamber

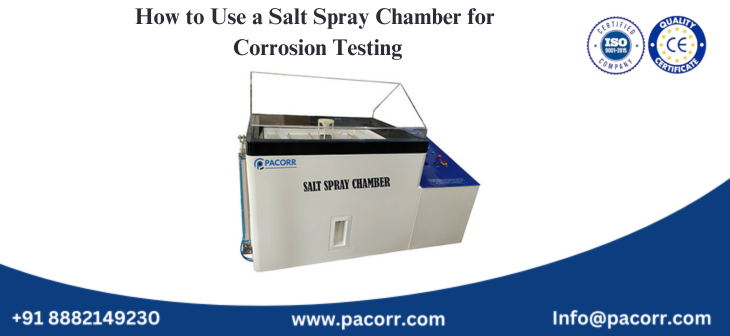

A Salt Spray Chamber, also known as a salt fog chamber, is a standardized piece of testing equipment used for simulating corrosive environments. This method involves continuously spraying a fine mist of saline solution onto test samples. Pacorr’s Salt Spray Chamber is expertly designed to conform to global testing standards, such as ASTM B117, ISO 9227, and JIS Z2371, ensuring accurate and reproducible results.

Preparing the Chamber

Before initiating any corrosion test, proper chamber preparation is crucial for achieving accurate results. Follow these steps:

Inspect the Chamber:

• Ensure the chamber is clean, dry, and free from residues or previous test materials.
• Check seals, hoses, nozzles, and valves for any leaks or damages.

Prepare the Salt Solution:

• Dissolve Sodium Chloride (NaCl) in distilled or deionized water to achieve a concentration of 5% by weight, which is standard for most corrosion tests.
• Use analytical-grade salt to avoid impurities affecting test accuracy.

Fill the Reservoir:

• Pour the freshly prepared saline solution into the chamber's reservoir.
• Ensure the solution level is adequate for the duration of your planned test.

Setting Up the Test Samples

Correct sample preparation and placement are critical:

Sample Cleaning:

• Clean test samples thoroughly to remove oils, dirt, fingerprints, or residues. Usually, a solvent rinse followed by air drying is recommended.

Mounting the Samples:

• Position samples on racks or hooks provided by Pacorr.
• Ensure samples do not touch each other or the chamber walls to allow uniform exposure.

Documentation:

• Clearly label each sample for easy identification post-testing.
• Document the initial conditions of samples by photographing or noting down observations.

Operating the Salt Spray Chamber

Using the Pacorr Salt Spray Chamber involves precise control of various parameters:

Set the Temperature:

• Adjust chamber temperature, typically around 35°C (95°F), according to ASTM B117.

Start the Spraying Process:

• Activate the salt mist spray by setting the nozzle pressure recommended by Pacorr (usually around 1-2 bar).
• Ensure uniform mist coverage across the samples.

Monitor Continuously:

• Regularly inspect the chamber conditions, temperature stability, spray uniformity, and solution level throughout the test.
• Pacorr’s chamber provides clear viewing panels for ease of monitoring without disturbing the test environment.

Duration of Testing

Testing durations vary depending on the intended use of the materials:

• Automotive and Aerospace industries typically require testing durations ranging from 24 to 1,000 hours.
• Marine industry tests often exceed 1,000 hours to simulate prolonged exposure to harsh sea environments.

Pacorr’s Salt Spray Chamber can accommodate both short-term and long-term testing requirements efficiently.

Post-Test Procedure

Once testing is complete, follow these steps:

End the Spraying:

• Turn off the spray nozzle and allow the mist to settle.

Sample Removal:

• Carefully remove samples from the chamber to prevent disturbing corrosion deposits.

Sample Cleaning and Evaluation:

• Gently rinse samples in clean water to remove residual salt.
• Dry samples thoroughly, typically using compressed air.

Document Observations:

• Photograph each sample immediately after drying.
• Record all visible corrosion, such as rust formation, pitting, or paint blisters.

Analyzing Test Results

Careful analysis is essential for determining corrosion resistance:

• Visual Assessment: Evaluate visually for rust coverage, pitting, blistering, and other corrosion forms.
• Grading: Follow standard grading scales like ASTM D610 for rust or ASTM D714 for blistering.
• Report Findings: Document detailed observations, test duration, environmental conditions, and photographic evidence for comprehensive reporting.

Maintenance of the Salt Spray Chamber

Regular maintenance ensures consistent performance of your Pacorr chamber:

• Clean the chamber interior, nozzles, and filters after every test cycle.
• Inspect seals and fittings regularly to prevent leaks.
• Conduct periodic calibration checks to ensure accuracy in temperature control and spray dispersion.

Benefits of Using Pacorr Salt Spray Chamber

Pacorr’s Salt Spray Chamber offers numerous advantages:

• High Precision: Accurate temperature and spray control.
• Compliance: Meets international standards, ensuring reliability and acceptance across industries.
• Durability: Built with robust materials for prolonged and repeated use.
• Ease of Use: Intuitive controls, clear visibility, and low maintenance requirements.

Applications in Industries

Pacorr’s Salt Spray Chamber is instrumental across industries:

• Automotive: Testing components like chassis, wheels, and coatings.
• Aerospace: Evaluating corrosion resistance of alloys, coatings, and fasteners.
• Marine: Verifying durability of shipbuilding materials and marine equipment.
• Construction: Assessing protective coatings for structural steel.
• Electronics: Ensuring reliability of enclosures, connectors, and circuit boards.

Proper use of a Salt Spray Chamber from Pacorr significantly enhances your ability to predict corrosion performance, improve product quality, and reduce the risks associated with premature product failure. Adhering to standardized testing methods, accurate record-keeping, and regular chamber maintenance ensures reliable and reproducible results, ultimately helping you maintain compliance, enhance product durability, and secure customer confidence in your products.
